Pail Printer

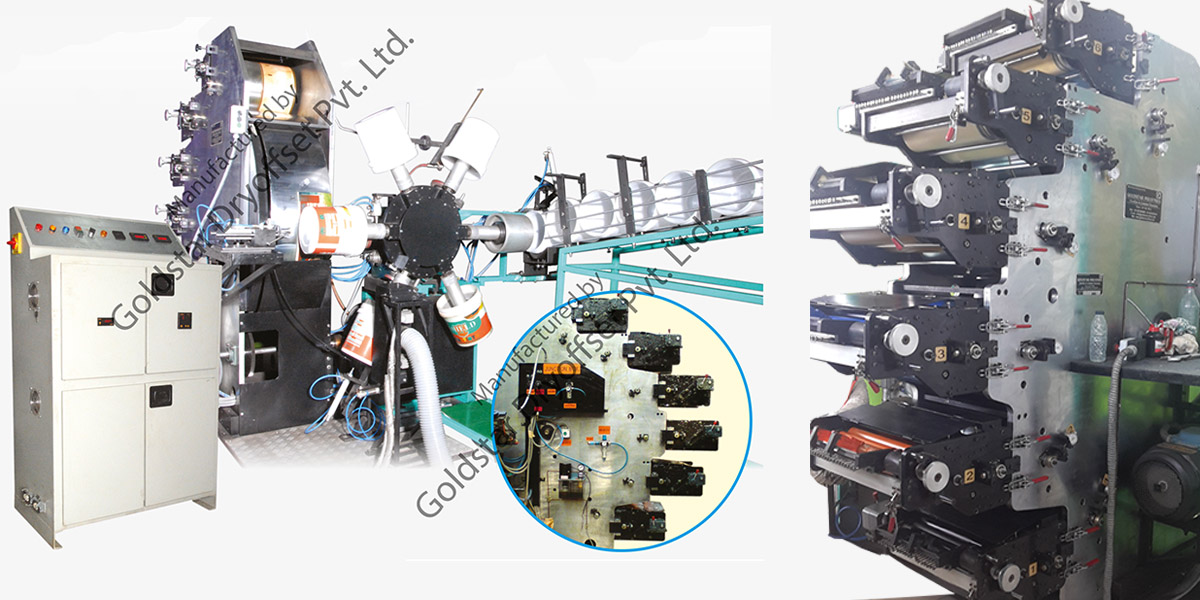

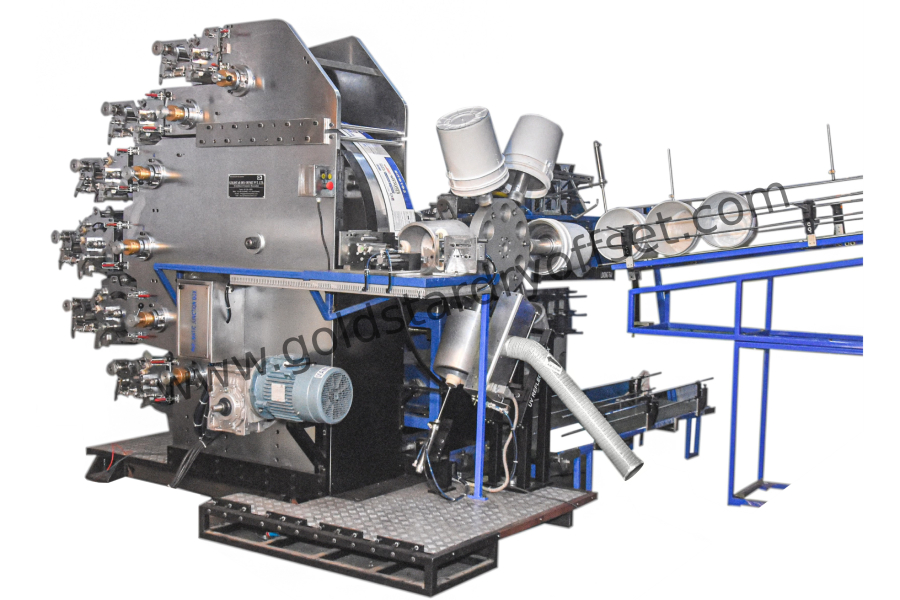

The Pail Printing Machine is a highly advanced printing solution that guarantees high printing accuracy. This Four color dry offset pail printing machine includes features like Auto Loading, Flame treatment with auto ignition, 360 degree printing with precise registration & automatic orientation, Instantaneous UV drying, Auto ejection with exit conveyor, Lower ink consumption, Less floor space, and is suitable for conical & cylindrical container (Wide Mouth). The machine is equipped with an AC motor with variable AC frequency inverter for variable speed, acceleration, and deceleration control, Anti-Backlash plate cylinder helical gear, and Micrometer lateral and radial plate cylinder adjustment. The Complete vacuum system with a pump holds each container on mandrels at the necessary position, and Positive timing throughout the machine ensures that each container is printed accurately. This pail printer can printing about 550 impression per hour with a suitability to print from 1 litre pail to 20 litres of pail.
Machine Video
Specifications
| Unit | Value |
|---|---|
| Min. & Max Dia. | 110mm x 350mm |
| Min. & Max. Height | 120mm x 400mm |
| Max Print Area | 900mm (L) x 275mm (H) |
| Electric Motor Drive | Ac Gear motor 5 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
| Pneumatic Pressure | @8-10 kg/cm2 |
| Air Consumption | @12m3/hr |
| Total Power Consumption | 12 kilowatts |
| Max. Impression | @ 500-600/hr (20 Ltr Bucket) |
| Total Machine Weight | 6000 kgs |
| Machine Dimension | 5500mm(L) x 3000mm(W) x 2500mm(H) (Including Loading & Unloading Conveyor) |
Features
Optional

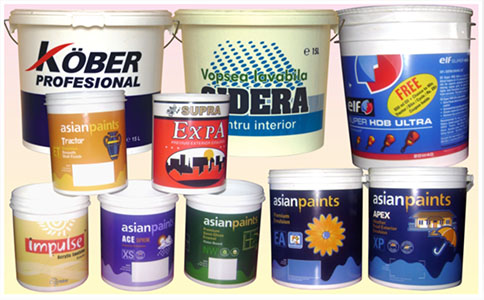

Product Samples
