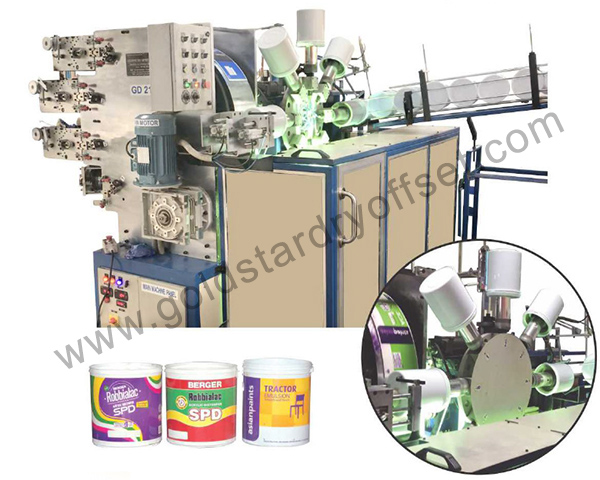

GD 210

Suitable to print 1 ltr to 5 ltr (0.26 to 1.32 US Gallons)

Machine Video
  • Auto Loading.
  • Flame treatment with auto ignition.
  • Instantaneous UV drying.
  • Auto Ejection with exit conveyor.
  • Lower ink consumption.
  • Less Floor space.
  • AC Motor with AC frequency inverter for variable speed, acceleration and deceleration control.
  • Anti-backlash plate cylinder gear.
  • Micrometer lateral and radial plate cylinder adjustment.
  • Complete vacuum system with pump that holds container on mandrels at neccessary position.
  • Positive timing through out machine.

  • Optional
  • Zeromax Drive for auto ink control.
  • Magnetic Cylinder from USA
  • Corona System.
  • Offline Registration.
  • PLC Based Ink Transfer System.
  • Maintenance Free Ink Distribution System.
  • Specifications
    Unit Value
    Min. & Max Dia. 80mm x 210mm
    Min. & Max. Height 100mm x 200mm
    Max Print Area 630mm (L) x 180mm (H)
    Electric Motor Drive Ac Gear motor 5 HP, 3 Phase, 50Hzs. with inverter for fine speed control
    Pneumatic Pressure @8-10 kg/cm2
    Air Consumption @12m3/hr
    Total Power Consumption 9.5 kilowatts
    Max. Impression @ 2200/hr (4 Ltr Bucket)
    Total Machine Weight 5500 kgs

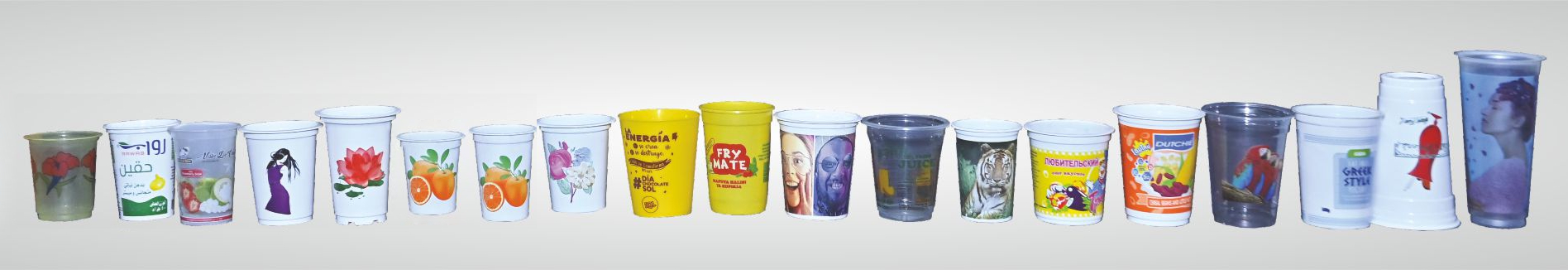

    Product Samples
