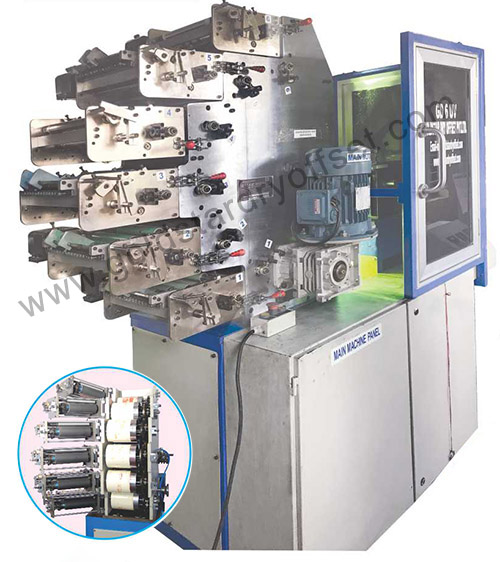

GD 6UV

Six Color UV Offset Pail Printing Machine (GD UV) guarantees high printing accuracy with features such as automatic loading, flame treatment, pre registration, auto unloading, etc. This Pail Printer includes centralized lubrication system, Micrometer lateral and radial plate cylinder adjustment. Complete vacuum system with pump that holds container on mandrels at neccessary position adds one of the important feature to our pail printing machine. This pail printer can printing about 800 impression per hour with a suitablity to print from 1 litre pail to 20 litres of pail.

Machine Video
Features
  • Auto Loading.
  • Flame treatment with auto ignition.
  • Instantaneous UV drying.
  • Auto Ejection with exit conveyor.
  • Lower ink consumption.
  • Less Floor space.
  • AC Motor with AC frequency inverter for variable speed, acceleration and deceleration control.
  • Anti-backlash plate cylinder gear.
  • Micrometer lateral and radial plate cylinder adjustment.
  • Complete vacuum system with pump that holds container on mandrels at neccessary position.
  • Positive timing through out machine.

  • Optional
  • Zeromax Drive for auto ink control.
  • Magnetic Cylinder from USA
  • Corona System.
  • Offline Registration.
  • PLC Based Ink Transfer System.
  • Maintenance Free Ink Distribution System.
  • Specifications
    Unit Value
    Min. & Max Dia. 80mm x 140mm
    Min. & Max. Height 80mm x 160mm
    Max Print Area 425mm (L) x 150mm (H)
    Electric Motor Drive Ac Gear motor 3 HP, 3 Phase, 50Hzs. with inverter for fine speed control
    Pneumatic Pressure @8-10 kg/cm2
    Air Consumption @12m3/hr
    Total Power Consumption 8 kilowatts
    Max. Impression @ 3000/hr (1 Ltr Bucket)
    Total Machine Weight 3500 kgs
    Product Samples
