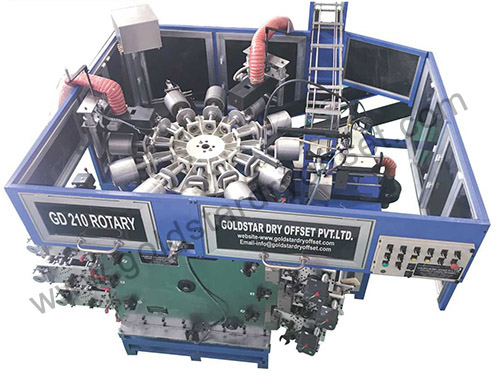

GD 210 Rotary
GD 210 Rotary
Machine Video
Features
  • Auto mechanical loading & unloading of container.
  • Flame treatment with auto ignition.
  • Instantaneous UV drying.
  • Online UV vannish (lacquer) unit for overcoat.
  • Individual & independent UV control system printing & varnish unit.
  • Auto orientation of container.
  • Individual &independent AC motor with varlable AC frequency inverter for variable speed for printing machine & varnish unit.
  • Anti-backlash plate cylinder gear.
  • Micrometer lateral and radial plate cylinder adjustment.
  • Easy to switch over varnish unit if not indeed.
  • Positive timing through out machine.
  • Auto ejection on exit conveyor.

  • Optional
  • Zeromax Drive for auto ink control.
  • Magnetic Cylinder from USA
  • Corona System.
  • Offline Registration.
  • PLC Based Ink Transfer System.
  • Maintenance Free Ink Distribution System.
  • Specifications
    Unit Value
    Min. & Max Dia. 80mm x 210mm
    Min. & Max. Height 100mm x 200mm
    Max Print Area 630mm (L) x 180mm (H)
    Electric Motor Drive Ac Gear motor 7.5 HP, 3 Phase, 50Hzs. with inverter for fine speed control
    Pneumatic Pressure @8-10 kg/cm2
    Air Consumption @12m3/hr
    Total Power Consumption 14 kilowatts
    Max. Impression @ 2200/hr (4 Ltr Bucket)
    Total Machine Weight 7500 kgs
