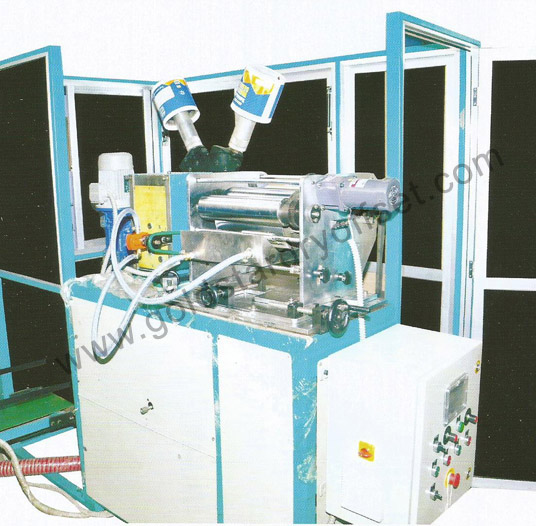

UV Lacquering Machine
Machine Video
  • Auto / Manual Loading system.
  • Individual AC drive for uniform lacquer distribution on pail which helps to control lacquer layer on container.
  • Fine lacquer distribution system.
  • Re-circulation of lacquer with the help of pump.
  • Lacquer spreading stations for uniform surface throughout the circumference.
  • Online UV lacquer drying.
  • Auto ejection on conveyor belt.
  • Specifications
    Unit Value
    Min. & Max Dia. 110mm x 350mm
    Min. & Max. Height 120mm x 400mm
    Pneumatic Pressure @8-10 kg/cm2
    Air Consumption @12m3/hr
    Total Power Consumption 6.5 kilowatts
    Max. Impression @ 500-600/hr (20 Ltr Bucket)
    Total Machine Weight 2500 kgs
