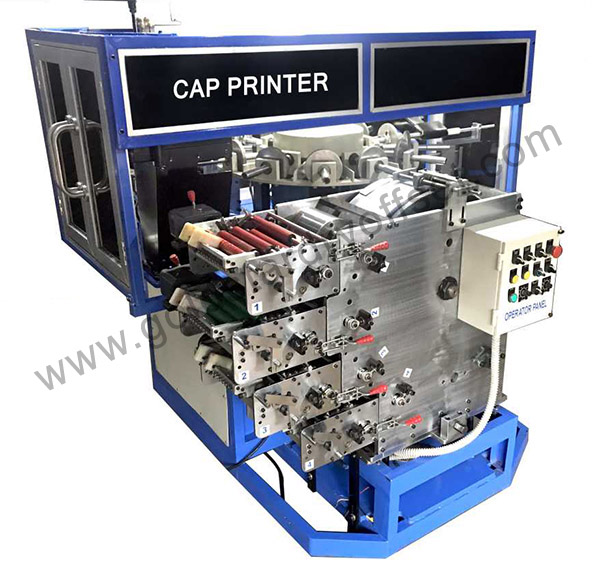

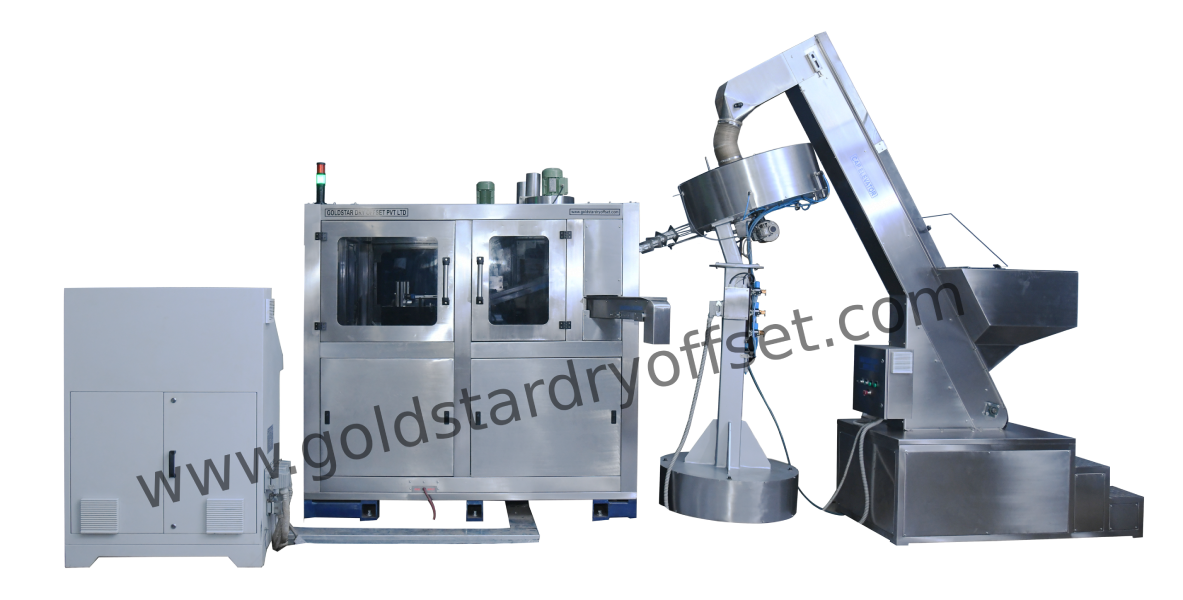

Rotary Cap PrinterSuitable for Plastic and ROPP (Metal) Caps
Machine Video

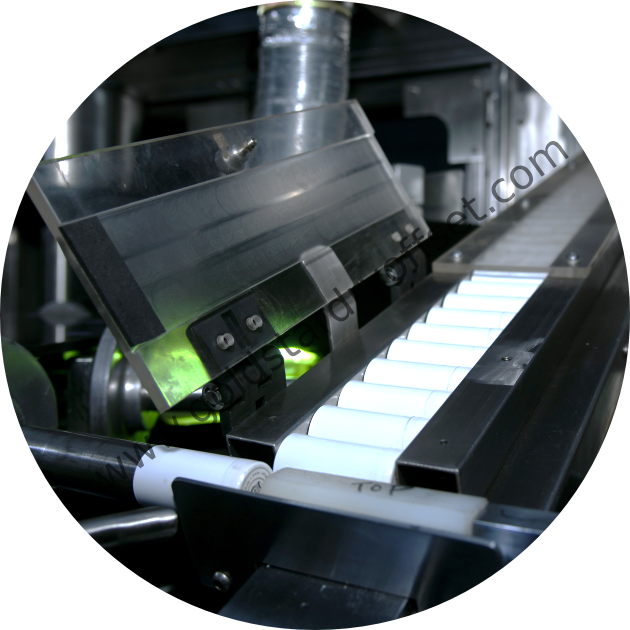

  • Auto mechanical loading & unloading of cap on exit conveyor.
  • Flame treatment with auto ignition.
  • Instantaneous UV drying.
  • Online UV varnish unit for overcoat.
  • Individual & independent UV control system for printing & varnish.
  • Auto orientation of container.
  • Individual & independent AC motor with variable AC frequency inverter for variable speed for printing machine & varnish unit.
  • Easy to switch over varnish unit if not indeed.
  • Anti-backlash plate cylinder gear.
  • Micrometer lateral and radial plate cylinder adjustment.
  • Positive timing through out machine.

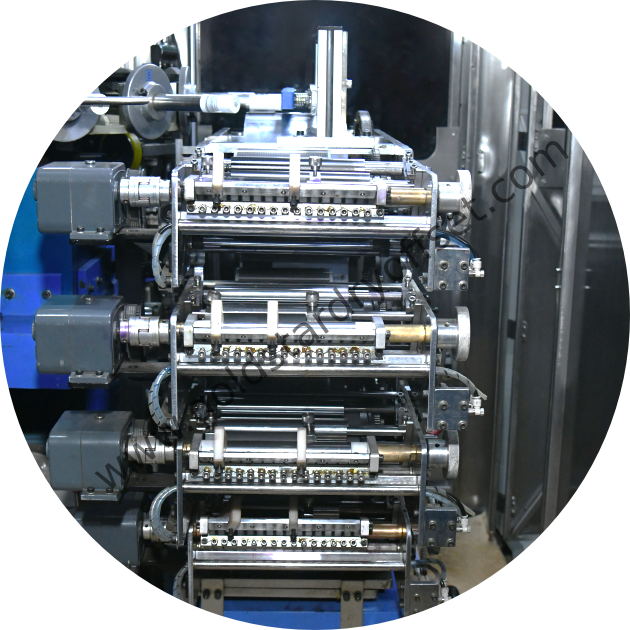

  • 4 blanket system with 8 station mechanical indexer.
  • Optional
  • Zeromax Drive for auto ink control.
  • Magnetic Cylinder from USA
  • Corona System.
  • Offline Registration.
  • PLC Based Ink Transfer System.
  • Maintenance Free Ink Distribution System.
  • Specifications
    Unit Value
    Min. & Max Dia. 20mm x 60mm
    Min. & Max. Height 25mm x 100mm
    Max Print Area 190mm (L) x 100mm (H)
    Electric Motor Drive Ac Gear motor 5 HP, 3 Phase, 50Hzs. with inverter for fine speed control
    Pneumatic Pressure @8-10 kg/cm2
    Air Consumption @12m3/hr
    Total Power Consumption 9 kilowatts
    Max. Impression @ 6000/hr
    Total Machine Weight 5500 kgs

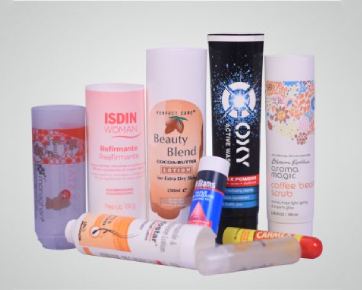

    Product Samples
