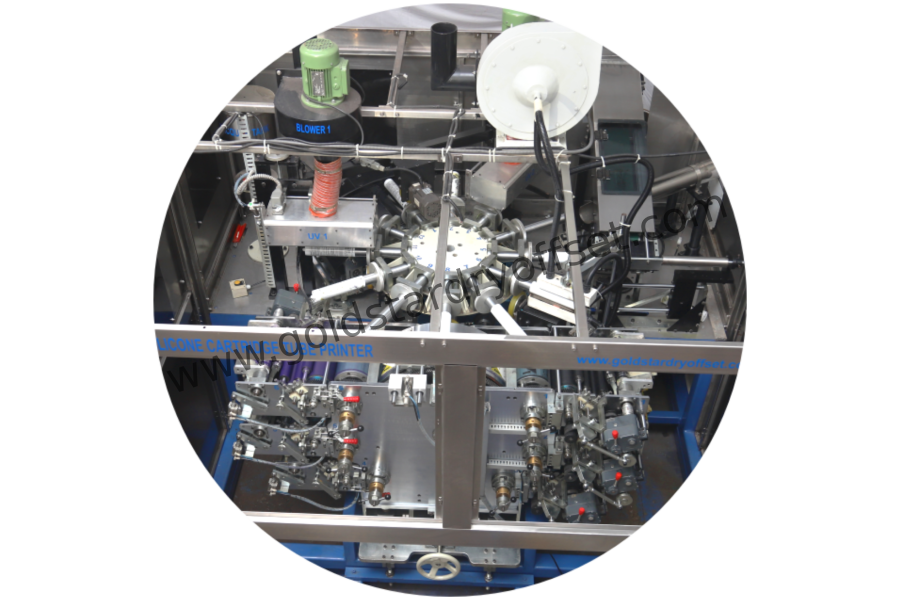

Rotary Tube Printer
Rotary Tube Printer
Machine Videos
  • Auto mechanical loading & unloading of tube on exit conveyor.
  • Flame treatment with auto ignition.
  • Instantaneous UV drying.
  • 4 Blanket printing with precise registration.
  • Online UV varnish unit for overcoat.
  • Individual & independent UV control system for printing & varnish.
  • Individual & independent AC motor with variable AC frequency inverter for variable speed for printing machine & varnish unit.
  • Easy to switch over varnish unit if not indeed.
  • Micrometer lateral and radial plate cylinder adjustment.
  • Anti-backlash plate cylinder gear.
  • Positive timing through out machine.
  • Optional Features
  • Zeromax Drive for auto ink control.
  • Magnetic Cylinder from USA
  • Corona System.
  • Offline Registration.
  • PLC Based Ink Transfer System.
  • Maintenance Free Ink Distribution System.
  • Multi Speed Gearbox with Neutral Position.
  • Specifications
    Unit Value
    Min. & Max. Dia. 30mm x 60mm
    Min. & Max. Height 80mm x 220mm
    Max Print Area 190mm (L) x 210mm (W)
    Mode of Feeding Automatic with Hopper
    Machine Speed 60-75 cycles/minute
    Number of colors 4/6/8
    Max. Impression 3500 / 4500 tubes per hour
    Total power compsumption 14 Kilowatts

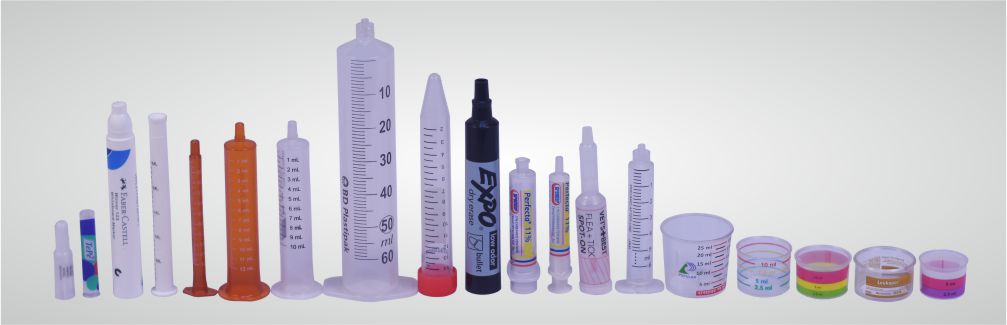

    Product Samples
