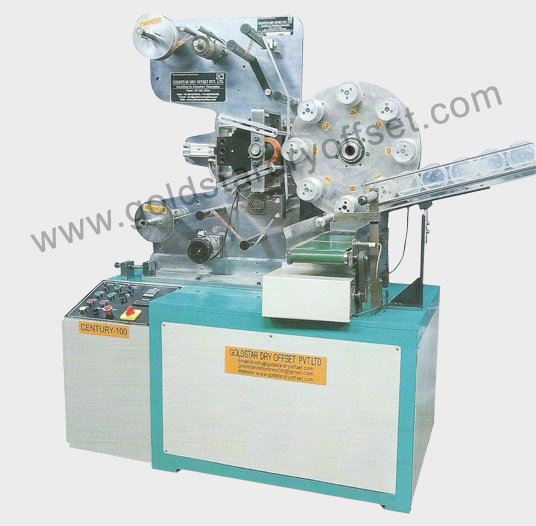

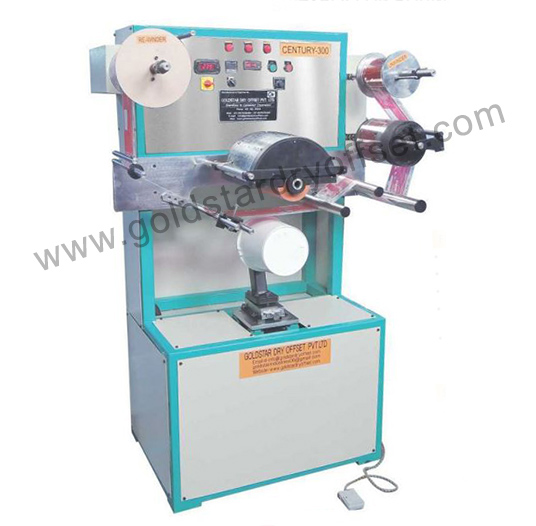

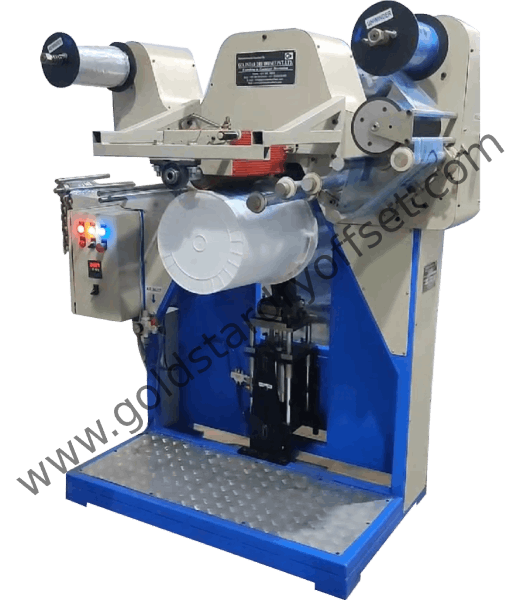

Semi Automatic Heat Label TransferSuitable for Cylinderical & Conical Containers

Machine Videos
Features
  • PLC Based Control System.
  • Electro Mechanical clutch Brake system for Foil Movement.
  • Auto position of container.
  • Auto Loading with loading conveyor.
  • Vertical foil movement for positively & more accurate movement of foil toward gravitational direction.
  • Variable frequency drive for Silicon Roller which help to control speed of Silicon Roller according to foil.
  • Special provision are made to avoid damage of Silicon Rubber Roller incase of power failure.
  • Specifications
    Unit Value
    Min. & Max. Dia. 90mm x 350mm
    Min. & Max. Height 120mm x 350mm
    Power Consumption 3kw / 230V AC
    Pneumatic Pressure 3 to 4 kg/cm2
    Speed 250 per hour (20 ltr Container).

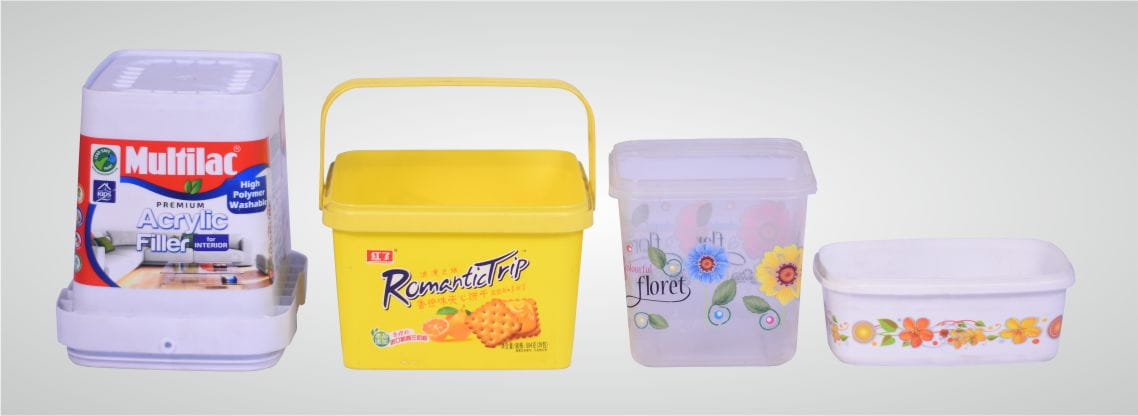

    Product Samples
